Maximizing Efficiency and Reducing Per-Part Costs: A Guide to Multi-Cavity Molds for Mass Production

Every manufacturing engineer has faced this challenge: you need to produce millions of identical parts with consistent quality, tight tolerances, and competitive pricing. The pressure is relentless. Your customers demand shorter lead times while procurement pushes for lower per-part costs. Meanwhile, you’re trying to balance capital investment with long-term profitability.

Multi-cavity injection molding represents the definitive solution for achieving true economies of scale in plastic manufacturing. When properly designed and executed, these sophisticated tools transform the economics of high-volume production, dramatically reducing per-part costs while increasing throughput. This guide will walk you through what multi-cavity molds are, when they make financial sense, the critical design elements that ensure success, and how to partner with a manufacturer who can deliver quality at scale.

Understanding Multi-Cavity Molds: Beyond the Basics

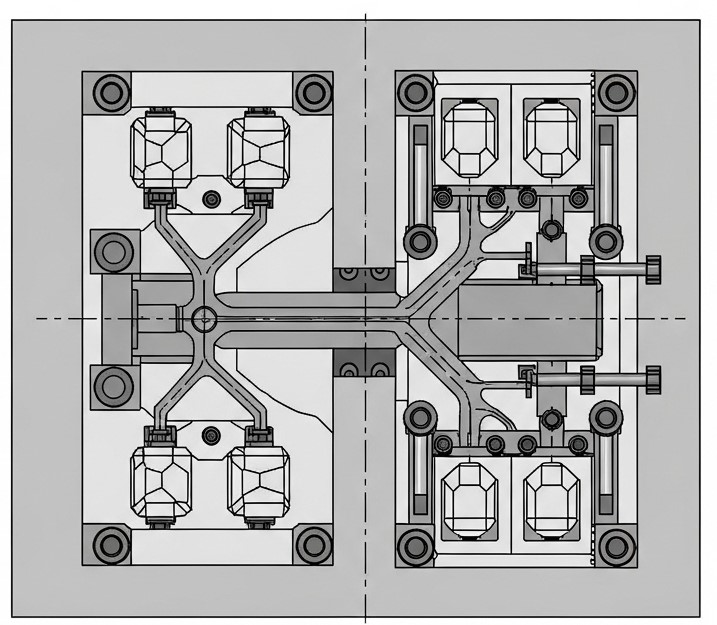

A multi-cavity mold is essentially a precision tool designed to produce multiple identical parts in a single injection cycle. Think of it like an advanced ice cube tray that creates eight, sixteen, or even sixty-four identical “cubes” simultaneously. But unlike that simple kitchen analogy, these molds represent sophisticated engineering achievements that must maintain micron-level precision across every cavity while withstanding millions of high-pressure, high-temperature cycles.

The most common type for mass production involves identical cavities, where every impression creates exactly the same part. This is where the real magic of economies of scale happens. Each machine cycle produces not one part, but eight, sixteen, or more identical components. The math is compelling: if a single-cavity mold produces one part every thirty seconds, an eight-cavity mold produces eight parts in that same thirty seconds, effectively multiplying your output by eight without requiring additional machine time.

Family molds represent a different approach entirely. These tools produce a set of related but different parts in a single cycle, such as the left and right halves of a housing assembly. While family molds can be valuable for certain applications, they present significant engineering challenges. The plastic must flow perfectly to cavities of different sizes and geometries, requiring sophisticated runner balancing and process control. The complexity often makes them suitable for lower-volume applications where the convenience of producing related parts together outweighs the engineering challenges.

The Economics: When Multi-Cavity Makes Financial Sense

The decision to invest in multi-cavity tooling should be approached as a strategic capital investment, not just a manufacturing choice in your custom plastic injection molding toolkit.. Yes, the upfront tooling cost for a multi-cavity mold is substantially higher than for a single-cavity tool. However, understanding the long-term return on investment reveals why virtually every high-volume manufacturer relies on multi-cavity production.

The economic benefits compound across several dimensions. Per-part costs drop dramatically because machine time, labor, and overhead are divided across multiple parts per cycle. A single press operator monitoring an eight-cavity mold is producing eight times the output of the same operator running a single-cavity tool. The mathematics become even more compelling as you scale up to sixteen, thirty-two, or sixty-four cavities.

Production throughput increases exponentially, not linearly. This means shorter lead times for large orders and the ability to respond more quickly to market demands. When a customer needs 500,000 parts, the difference between producing one part per cycle and sixteen parts per cycle can mean the difference between a twelve-week lead time and a three-week delivery. In today’s competitive marketplace, that responsiveness often determines who wins the business.

Machine utilization optimization provides another layer of value. A single injection molding press equipped with a high-cavity mold can achieve the output that would otherwise require multiple machines, presses, and operators. This translates to lower facility costs, reduced energy consumption, and simplified production management.

The break-even analysis depends on several factors, but some general guidelines help determine when multi-cavity tooling makes sense. If your annual part demand exceeds 100,000 units and your product design is stable for long-term production, you’re likely in multi-cavity territory. Projects requiring more than 500,000 parts annually almost always justify high-cavity tooling, assuming the part geometry and size allow for efficient cavity layout.

Consider a real-world scenario: a consumer electronics component with an annual demand of 2 million units. A single-cavity mold might cost $50,000 and produce parts at $0.15 each due to longer cycle times and higher labor content. An eight-cavity version might cost $180,000 but reduce the per-part cost to $0.06 due to improved efficiency. Over 2 million parts, the eight-cavity approach saves $180,000 in production costs while paying for the additional tooling investment and delivering parts faster.

Engineering Excellence: The Anatomy of High-Performance Multi-Cavity Molds

The difference between a mediocre multi-cavity mold and an exceptional one lies in the engineering details that most customers never see. These technical elements determine whether your tool will reliably produce consistent parts for millions of cycles or become a source of ongoing quality issues and production delays.

Tooling material selection is absolutely non-negotiable for high-volume applications. Molds destined for multi-million piece runs must be constructed from hardened tool steels such as H-13, which can withstand the extreme pressures and temperatures of continuous production while maintaining dimensional stability. Softer aluminum molds, while suitable for prototyping and short runs, simply cannot endure the mechanical stresses of high-volume production. The false economy of choosing aluminum for a high-volume application inevitably leads to premature tool failure, production disruptions, and ultimately higher total costs.

The runner system design represents perhaps the most critical engineering challenge in multi-cavity tooling. This network of channels delivers molten plastic from the injection unit to each individual cavity. A geometrically balanced runner system ensures that every cavity receives plastic at precisely the same time, temperature, and pressure. This synchronization is essential for producing consistent parts across all cavities. Imbalanced flow leads to short shots in some cavities, overpacking in others, and part-to-part variations that can render entire production runs unusable.

Gate design and placement require equally careful consideration. The gate is where plastic enters each cavity, and its design affects everything from part cosmetics to structural integrity. Gates must be sized and positioned to minimize flow marks, weld lines, and stress concentrations while ensuring complete cavity fill. In multi-cavity applications, gate consistency across all cavities becomes paramount since any variation multiplies across the entire production run.

Cooling channel efficiency often determines overall cycle time since cooling typically represents the longest phase of the injection molding process. A well-engineered multi-cavity mold incorporates optimized cooling circuits that ensure uniform heat removal from all cavities. This uniform cooling prevents warpage, maintains dimensional consistency, and minimizes cycle time. Advanced cooling designs might include conformal cooling channels that follow the contours of complex part geometries, ensuring optimal heat transfer throughout the cooling phase.

Even the most sophisticated mold design means nothing without robust construction. Multi-cavity molds experience tremendous forces during production, and any deflection or wear affects part quality. Premium molds incorporate hardened wear surfaces, precision guide systems, and robust support structures that maintain alignment and prevent deflection even after millions of cycles.

Ensuring Consistency: Quality Control Across Every Cavity

The primary concern with multi-cavity production is maintaining consistent quality across all cavities throughout the tool’s entire production life. How do you guarantee that the millionth part from cavity sixteen maintains the same dimensions, surface finish, and performance characteristics as the first part from cavity one? The answer lies in scientific process development and rigorous quality systems.

Scientific molding principles form the foundation of consistent multi-cavity production. Rather than relying on trial-and-error adjustments, scientific molding uses data-driven methods to establish a stable, repeatable process window. This involves comprehensive process characterization that maps the relationships between processing parameters and part quality. Temperature, pressure, injection speed, and cooling time are optimized not through guesswork, but through systematic experimentation that identifies the conditions producing optimal results across all cavities.

Process monitoring and automation provide real-time assurance that each cycle meets established parameters. Modern injection molding machines equipped with advanced control systems monitor dozens of process variables throughout each cycle. Pressure sensors, temperature monitoring, and position feedback ensure that every shot delivers consistent results. When parameters drift outside acceptable ranges, the system automatically makes corrections or stops production to prevent defective parts.

Even with excellent mold design and process control, individual cavities may require periodic maintenance. Quality multi-cavity molds are designed with repairability in mind. Individual cavity inserts can be removed and refurbished without scrapping the entire tool. This modular approach means that normal wear or damage to one cavity doesn’t shut down the entire production operation. While seven cavities undergo maintenance, the remaining cavities continue producing parts, maintaining most of your production capacity.

The Production Part Approval Process (PPAP) represents the gold standard for validating multi-cavity production capability. This comprehensive study proves that every cavity can consistently produce parts meeting all engineering specifications. PPAP documentation includes detailed capability studies showing statistical process control data from extended production runs. For automotive and aerospace applications, PPAP approval is often mandatory, but even in less regulated industries, this level of validation provides confidence in long-term production capability.

Design evolution presents unique challenges in multi-cavity tooling. When engineering changes are required, experienced manufacturers can often accommodate modifications through selective cavity updates or modular insert replacements. This flexibility prevents the need to scrap entire tools when design improvements are identified during production ramp-up or market feedback.

Your Strategic Manufacturing Partner

Multi-cavity injection molding represents far more than just a manufacturing technique; it’s a strategic approach to achieving competitive advantage through operational excellence. When properly executed, these sophisticated tools unlock the economies of scale that make high-volume production both profitable and responsive to market demands.

The investment in multi-cavity tooling pays dividends throughout the product lifecycle through reduced per-part costs, shortened lead times, and improved production flexibility. However, realizing these benefits requires partnership with a manufacturer who understands both the technical complexities and business implications of high-volume production.

At Nicolet Plastics, our dedicated high-volume facility in Jackson, Wisconsin specializes in the robust tooling and process expertise that multi-cavity production demands. Our engineering team brings decades of experience in designing and optimizing multi-cavity tools for demanding applications across automotive, medical, consumer, and industrial markets. We understand that your tooling investment represents more than just manufacturing capability—it’s the foundation for your product’s market success.

Ready to explore how multi-cavity tooling can transform your production economics? Contact our engineering team today to discuss your high-volume project and receive a comprehensive manufacturability analysis. We’ll evaluate your part design, volume requirements, and quality specifications to determine the optimal cavity configuration for your application. More importantly, we’ll provide the data-driven insights you need to make confident tooling decisions that support your long-term business objectives.
